Crosslink foam with polyethylene (XLPE) base in sheets

The Crosslink is a closed-cell, Cross-linked EVA and/or polyethylene foam. Being a foam, it has applications in different industries that require a product that is soft to the touch and/or has physical resistance.

crosslink-foam-sheet-image

Features

Attribute
Memory
Density
(material weight)
Other physical properties
Crosslinked ethylene-vinyl acetate (EVA) foam base
Memory
The EVA enhances the product's memory. It easily returns to its original state once it is pressed
Density (material weight)
It has a higher weight compared to a polyethylene product
Other physical properties
EVA results in a much more flexible product that has better resistance to breakage
Crosslinked polyethylene foam base
Memory
Having less memory, it takes more time to return to its original shape once it is pressed.
Density (material weight)
It is lighter than EVA foam
Other physical properties
It is a more rigid material, with slightly more fragile chains

Hardness ranges from 20º to 80º Asker C

Density ranges from 4 lbs/ft3 to 15 lbs/ft3, depending on the needs of each industry

Presentation

The product presentation ranges from 0.90 x 1.70m to 1.45 x 3m depending on the needs of each industry

crosslink-foam-sheet-option2

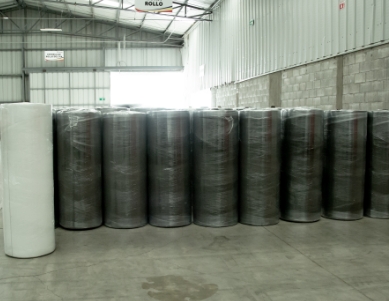

Roll
crosslink-foam-sheet-option1

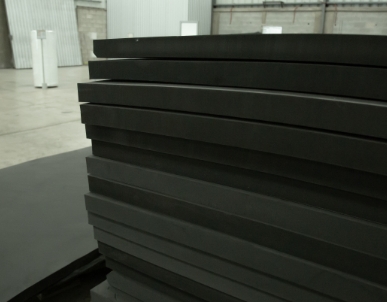

Sheet

Crosslink foam with polyethylene (XLPE) base in sheets

Product
XLPE-4LB-45°
XLPE-5LB-40°
XLPE-6LB-58°
XLPE-8LB-60°
XLPE-9LB-70°
XLPE-5.5LB-40° (E4)
Density
XLPE-4LB-45°
4 lbs/ft3
64 kg/m3
XLPE-5LB-40°
5 lbs/ft3
80 kg/m3
XLPE-6LB-58°
6 lbs/ft3
96 kg/m3
XLPE-8LB-60°
8 lbs/ft3
128 kg/m3
XLPE-9LB-70°
9 lbs/ft3
144 kg/m3
XLPE-5.5LB-40° (E4)
5.5 lbs/ft3
88 kg/m3
Hardness
XLPE-4LB-45°
45° Shore C
XLPE-5LB-40°
40° Shore C
XLPE-6LB-58°
58° Shore C
XLPE-8LB-60°
60° Shore C
XLPE-9LB-70°
70° Shore C
Common use
XLPE-4LB-45°
Lightweight returnable packaging.
Packaging for cosmetic parts.
XLPE-5LB-40°
Lightweight returnable packaging.
Packaging for cosmetic parts.
XLPE-6LB-58°
Returnable packaging for medium to heavy-weight parts.
Packaging for cosmetic parts.
Shoe platform, engraved sole.
XLPE-8LB-60°
Returnable packaging: for heavy-weight parts.
Packaging for cosmetic parts.
XLPE-9LB-70°
Returnable packaging: for very high weight pieces.
Packaging for maximum protection.
XLPE-5.5LB-40° (E4)
Luxury non-returnable packaging.

*Download the Technical Sheet of each product

Crosslink foam with polyethylene and EVA (XEVA) base in sheets

Product
XEVA-4.5LB-38°
XEVA-5LB-35°
XEVA-5.5LB-45°
XEVA-7.5LB-50°
XEVA-8LB-58°
XEVA-8.5LB-65°
XEVA-14LB-70°
XEVA-19LB-80°
Density
XEVA-4.5LB-38°
4.5 lbs/ft3
72 Kg/m3
XEVA-5LB-35°
5 lbs/ft3
80 kg/m3
XEVA-5.5LB-45°
5.5 lbs/ft3
88 kg/m3
XEVA-7.5LB-50°
7.5 lbs/ft3
120 kg/m3
XEVA-8LB-58°
7.5 lbs/ft3
128 Kg/m3
XEVA-8.5LB-65°
8.5 lbs/ft3
136 kg/m3
XEVA-14LB-70°
14 lbs/ft3
244 kg/m3
XEVA-19LB-80°
19 lbs/ft3
304 kg/m3
Hardness
XEVA-4.5LB-38°
38° Shore C
XEVA-5LB-35°
35° Shore C
XEVA-5.5LB-45°
45° Shore C
XEVA-7.5LB-50°
50° Shore C
XEVA-8LB-58°
58° Shore C
XEVA-8.5LB-65°
65° Shore C
XEVA-14LB-70°
70° Shore C
XEVA-19LB-80°
80° Shore C
Common use
XEVA-4.5LB-38°
Packaging for sealing.
XEVA-5LB-35°
Educational, pre-formed template, advertising items.
XEVA-5.5LB-45°
Baby floor, slipper, sandal, and preformed heel cups.
XEVA-7.5LB-50°
Specialized packaging.
XEVA-8LB-58°
Shoe platforms, insoles for open footwear (sandals).
XEVA-8.5LB-65°
Structural for medical products (lumbar support, belts, etc.)
XEVA-14LB-70°
Engraved sole, midsole, and orthopedics.
XEVA-19LB-80°
Midsole and orthopedics.

*Download the Technical Sheet of each product

Crosslink foam with EVA (XPRIME) base in sheets

Product
XPRIME-5.5LB-20°
XPRIME-4.5LB-30°
XPRIME-10LB-50°
XPRIME-25LB-70°
Density
XPRIME-5.5LB-20°
5 lbs/ft3
880 kg/m3
XPRIME-4.5LB-30°
4.5 lbs/ft3
72 kg/m3
XPRIME-10LB-50°
10 lbs/ft3
160 kg/m3
XPRIME-25LB-70°
25 lbs/ft3
400 kg/ft3
Hardness
XPRIME-5.5LB-20°
20° Shore C
XPRIME-4.5LB-30°
30° Shore C
XPRIME-10LB-50°
50° Shore C
XPRIME-25LB-70°
70° Shore C
Common use
XPRIME-5.5LB-20°
Ring support, boxing glove padding, riot vest padding. Specialized automotive packaging.
XPRIME-4.5LB-30°
Premium template, Comfort plant for sandal. Special uses. Specialized automotive packaging.
XPRIME-10LB-50°
Orthopedic insole. Specialized automotive packaging.

*Download the Technical Sheet of each product

Crosslink foam in rolls

Product
XLPE-5.5LB-40° (Roll)
XLPE-4LB-45° (Roll)
XEVA-5LB-35° (Roll)
Base
XEVA-5LB-35° (Roll)
Polietileno y EVA
Density
XLPE-5.5LB-40° (Roll)
5 lbs/ft3
80 kg/m3
XLPE-4LB-45° (Roll)
4 lbs/ft3
64 kg/m3
XEVA-5LB-35° (Roll)
5 lbs/ft3
80 kg/m3
Hardness
Common use
XLPE-5.5LB-40° (Roll)
Template roll (bonded), packaging box lining, corner packaging. Preformed tray. Synthetic support.
XLPE-4LB-45° (Roll)
It is a lightweight, easy-to-preform product that is used to create protective and cushioning packaging in specialized markets such as automotive and cases.
XEVA-5LB-35° (Roll)
Sports and promotional items, comfort insole.

*Download the Technical Sheet of each product

Download our brochure

Privacy policy

manufacturers-crosslink-foam-sheet-mockup

Embossing

placa-de-espuma-eva-grabado-puma

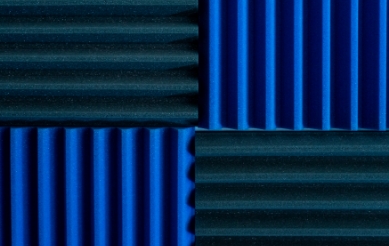

Puma
placa-de-espuma-eva-grabado-burbuja

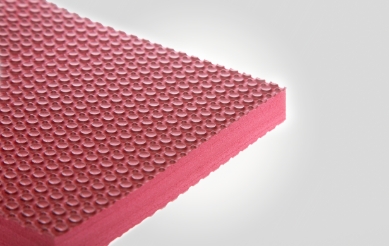

Bubble
placa-de-espuma-eva-grabado-cacahuate

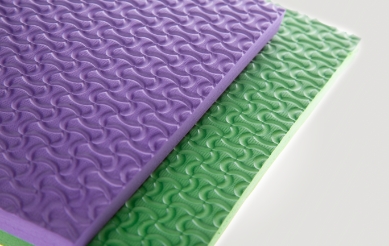

Peanut

Colors

We have more than 20 colors, among which are:

Canary yellow

Pastel blue

King blue

White

Dark brown

Orange

Camel

Skin color

Fuchsia

Light grey

Dark grey

Magenta

Black

Red

Aqua green

Lemon green

Purple

crosslink-foam-sheet-wood-texture

Wood
